Mobile Home Kitchen Floor Plan


Kitchen Shape: Double Galley

Flooring: Engineered Wood (Glued)

Subfloor: Wood

Insulation Surface: 165 sq. ft.

Voltage: 120 V

Mobile Home Kitchen Floor Plan

Installation Options:

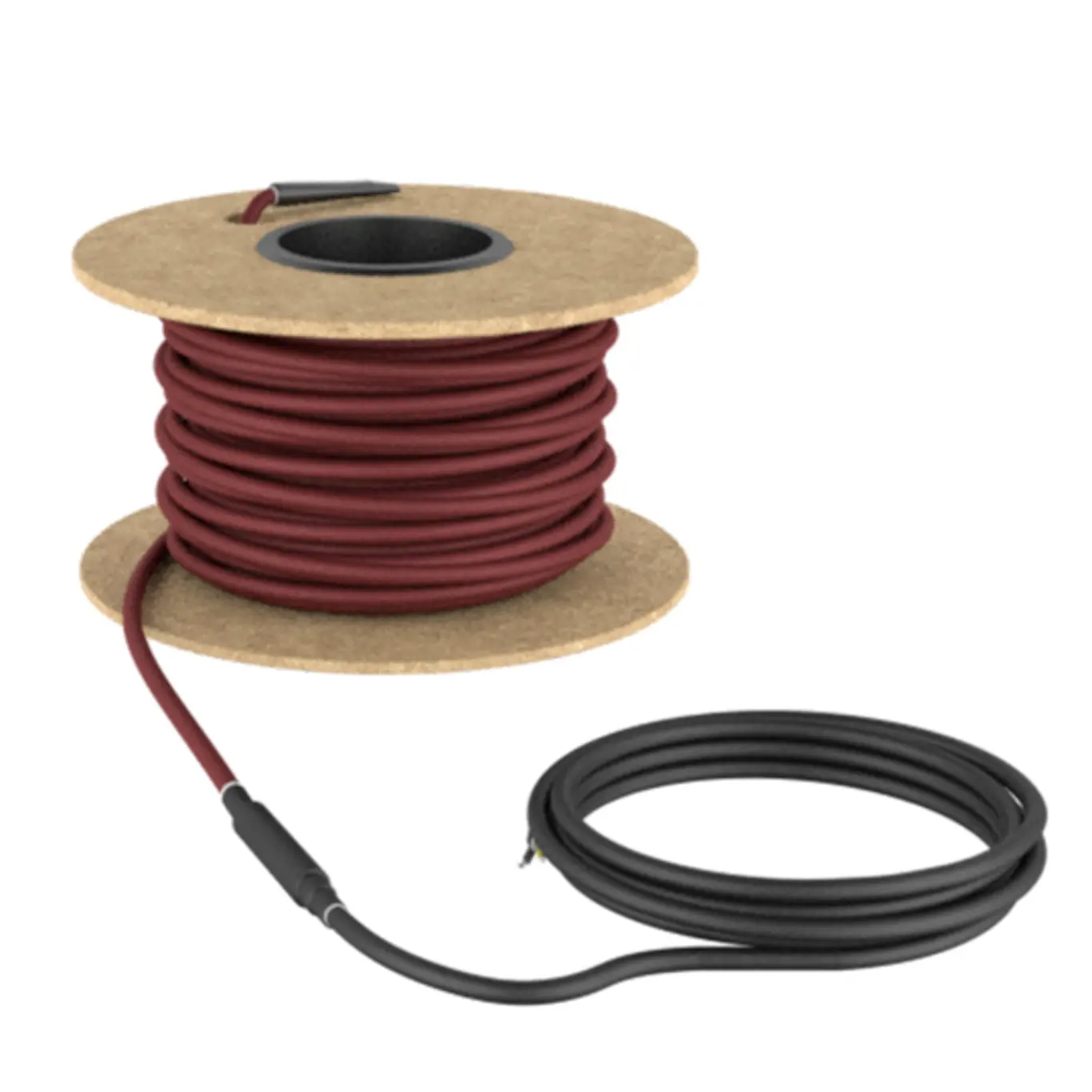

Tempzone Floor Heating Cable:

Tempzone Floor Heating Cable

“The WarmlyYours TempZone™ 3.7-Watt Floor Heating Cable allows you to bring radiant warmth to any room. TempZone™ Floor Heating Cable (Twin) is ultra-low EMF by design. It features a twin conductor with a 15’ cold lead and is available in two voltage options and a range of lengths to meet the requirements of any installation. In 120V, we offer lengths ranging from 30 to 432 linear feet . For 240V, our lengths range from 55 to 864 linear feet.”

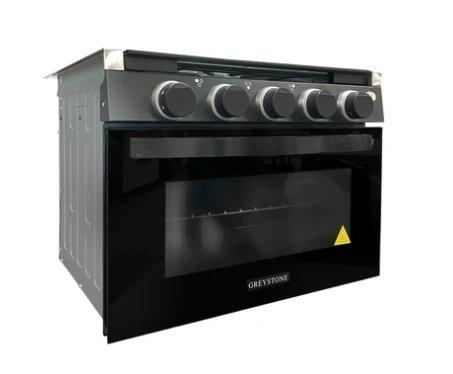

17" Greystone Range Oven CF-RV17 Stove LP Gas Ignition Glass Cover:

17 Greystone Range Oven CF-RV17 Stove LP Gas Ignition Glass Cover

“Greystone 17 inch 2 in 1 gas range and cook top, cast iron grates, foldable glass top, LED backlit knobs. Available in Black Combination.

Benefits: More than 30% more capacity than traditional RV ranges of the same size 3D cooking uses moving air to cook foods faster and more even Over 8,000 BTUs of power in the burners and up to 500 degrees in the oven Gas hook up and 12V power connection is all that’s needed.”

33 Inch Stainless Steel Top Mount Drop In Single Bowl Kitchen Sink w/ One Faucet Hole:

33 Inch Stainless Steel Top Mount Drop In Single Bowl Kitchen Sink w/ One Faucet Hole
  • Crafted from premium 18 gauge grade 304 stainless steel.
  • Top-mount / Drop-in Rim design allow the sink to sit on top of the countertop.
  • The ONLY 9" depth single bowl drop-in sink in the market!
  • Sink comes with 1 pre-drilled faucet hole.
  • Perfect companions to professional style appliances and ideal complements to stone, quartz, and solid surface countertops.
  • Fully Protected by heavy duty sound deadening pads and undercoating for noise reduction.
  • Brushed satin finish deck and bowl.
  • Drain opening fits standard 3-1/2" drains & disposals.

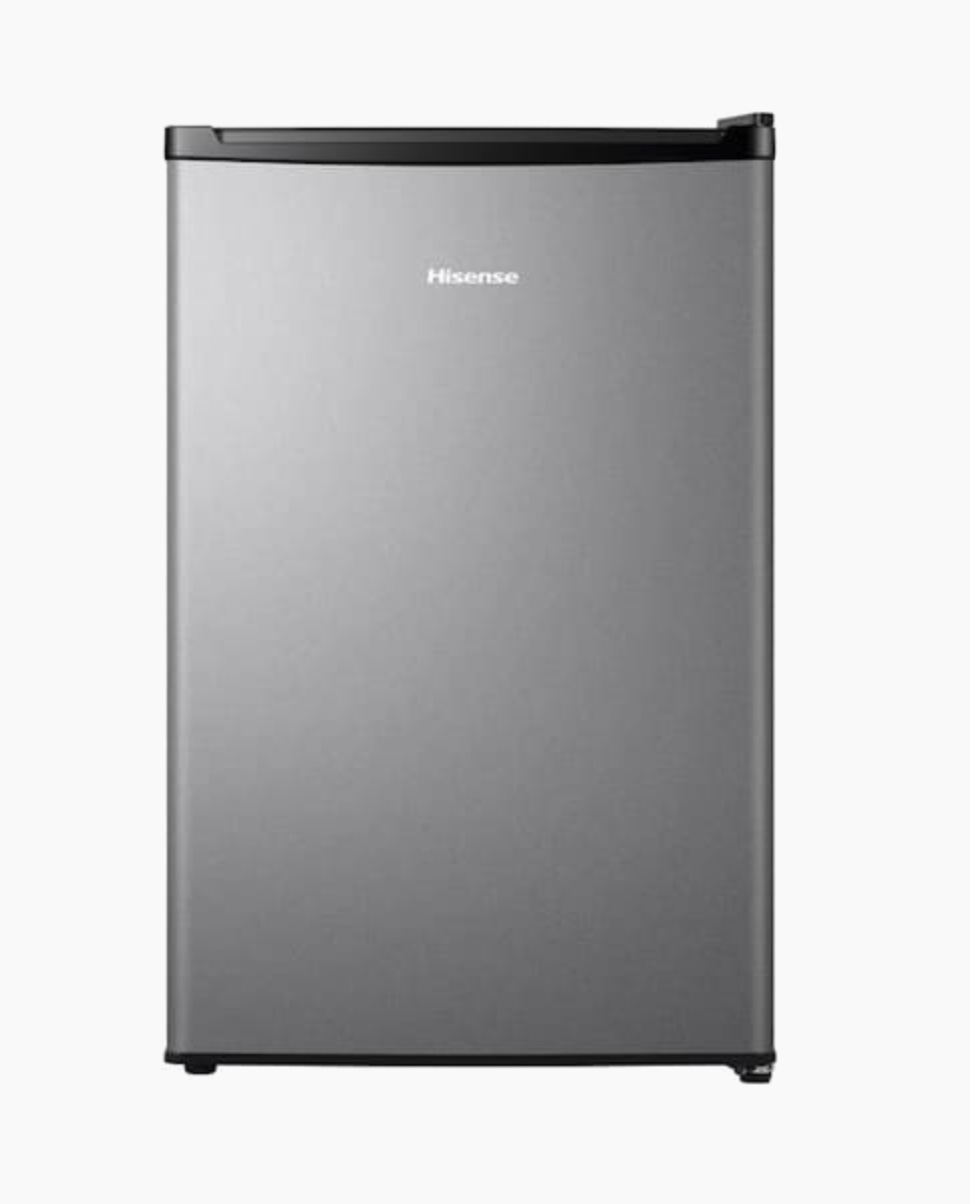

Hisense 3.3-cu ft Freestanding Mini Fridge Freezer Compartment (Silver):

Hisense 3.3-cu ft Freestanding Mini Fridge Freezer Compartment (Silver)
  • Energy star certified 4.4 cu ft single door mini refrigerator meets or exceeds federal guidelines for energy efficiency and helps to save energy and money all year long
  • All-refrigerator (freezer less) design provides desired usable capacity for food and beverages
  • Reversible door allows to open from either right or left to suit your needs
